Thursday, January 17, 2013

psql: FATAL: Ident authentication failed for user "username"

$ psql -d database -U username -W
psql: FATAL: Ident authentication failed for user "username"

fix
 # vi /var/lib/pgsql/data/pg_hba.conf
This file contains the hosts allowed to connect, clients  authenticatation, database users to use, which databases can be accessed

By default postgresql uses IDENT-based authentication. IDENT will never allow you to login via -U and -W options.
So append following lines to allow login from localhost :

local all all trust
host all 127.0.0.1/32 trust

esc -> wq -> enter

# service postgresql restart

$ psql -d database -U username -W
 now you can able to connect

Subversion backup and restore

Instruction

svnadmin dump repo and scp to other machine Do this for each repository you have.
$ svnadmin dump /path/to/reponame > /tmp/reponame.dump ; scp -rp /tmp/reponame.dump user@server.domain.com:/tmp/
On other machine install subversion
$ yum install subversion
Create the corresponding repositories. Do this for each repository you have.
$ svnadmin create /path/to/reponame
Load svn dump into new repo on new machine. Do this for each repository you have.
$svnadmin load /path/to/reponame < /tmp/repo1.dump
Setting Permissions.. This is the most common mistake when moving an svn repo. Do this for each repository you have.
chown -R svn:svnusers /path/to/reponame ; chmod -R g+w /path/to/reponame/db/

check your ENV like:
 bash-2.05b# env
check where the svnserve binary is located:
 # which svnserve
/usr/local/bin/svnserve
ok our wrapper is going to have to fall in PATH prior to this location.. /sbin is a good place seeing its our 1st exec path on the system as root.
create wrapper:
touch /sbin/svnserve ; chmod 755 /sbin/svnserve
now edit it to look like so:
 bash-2.05b# cat /sbin/svnserve
#!/bin/sh
# wrapper script for svnserve
umask 007
/usr/local/bin/svnserve -r /path/to "$@"

You do not need to do: :/path/to/reponame.... this is the big trick here folks.
Start svnserve with new wrapper script like so:
$ /sbin/svnserve -d  ( start daemon mode )

To show hidden devices in device manager (windows)

Add a system variable in environment variables.

mycomputer-> properties->advanced-> environment variables -> system variables.

Variable name: devmgr_show_nonpresent_devices
variable value: 1

Device manager -> view -> show hidden devices
then you are able to see some hidden devices , uninstall the devices which are like hidden

Friday, June 3, 2011

Installing tomcat in linux

Installing The Software
There are many ways that you can get Tomcat installed on your Linux system. You could use the rpm's that are now available on http://tomcat.apache.org/ or the tarballs from the http://tomcat.apache.org/ site. This document covers only the Tomcat tarballs.
If you have already downloaded the binary, simply copy it to the directory you want to install it under and expand the file. For example, if I downloaded the Tomcat tar file into /home/someuser/downloads and wanted to install it under /opt, here is what I would do. As root user:
# cp /home/someuser/downloads/jakarta-tomcat-5.x.xx.tar.gz /opt
# tar -zxvf jakarta-tomcat-5.x.xx.tar.gz
A directory called jakarta-tomcat-5.x.xx will be created and the Tomcat files will expand under it.
Previously, I would have recommended that the jakarta-tomcat-5.x.xx directory be renamed to just tomcat. However, because I expect Tomcat 5 to be updated more frequently for now, since it has only just been released, I would instead recommend creating a symbolic link to a tomcat directory.
# ln -s jakarta-tomcat-5.0.25 tomcat
In order for Tomcat to startup and shutdown, you will also need to add an environment variable pointing to the Tomcat directory (CATALINA_HOME), and one variable pointing to your Java SDK directory (JAVA_HOME). I will make the following assumptions:
JAVA_HOME
Java is installed into /opt/IBMJava2-141.
CATALINA_HOME
Tomcat is installed into /opt/jakarta-tomcat-5.x.xx and symlinked to /opt/tomcat.
Insert the following lines inside /etc/profile or /root/.bashrc.
export JAVA_HOME=/opt/IBMJava2-141
export CATALINA_HOME=/opt/tomcat
Now, save the file and reboot the system to ensure that all changes take effect.
3.4. Starting and Stopping Tomcat
Before we begin, we will need to ensure that CATALINA_HOME and JAVA_HOME are correctly set. To do this, we open a terminal and type the following :
# echo $CATALINA_HOME
# echo $JAVA_HOME
If you get a blank line, or if the directory points anywhere besides where it is supposed to, you will have to correct these environment variables first, before continuing.
If everything is fine, you can start Tomcat with the following command. As root,
# $CATALINA_HOME/bin/startup.sh
To check if Tomcat is running fine, you should open a browser and point the URL to http://localhost:8080. You should see the default Tomcat welcome page. It would be a good idea, at this point, to browse the documentation or try out the example servlets and JavaServer Pages samples.
To stop Tomcat, as root,
# $CATALINA_HOME/bin/shutdown.sh
If Tomcat does not start and you downloaded the zip file, the cause is probably due to permissions. Ensure that the following files are executable : inside $CATALINA_HOME/bin directory,
# chmod +x startup.sh
# chmod +x shutdown.sh
# chmod +x tomcat.sh
After you have made the files executable, try starting and stopping Tomcat again.
3.5. Running Tomcat as Non-Root User
I don't believe there any issues with running Tomcat as root user. However, for the more security-conscious readers out there, here are some instructions on running Tomcat as a non-root user.
At this stage, the Tomcat packages, files and binaries are owned by root. We will first need to create a Tomcat user and group that will own these files, and under which Tomcat will run.
Tomcat User :: tomcat
Tomcat Group :: tomcat
Not too imaginative, huh ? We will now create the Tomcat user and group. Open a terminal window and, as root,
# groupadd tomcat
# useradd -g tomcat -d /opt/tomcat tomcat
# passwd tomcat
Notice that we specified the home directory of Tomcat to be /opt/tomcat. Some people believe that this is good practice because it eliminates an additional home directory that needs to be administered.
Now, we will put everything in /opt/tomcat under Tomcat user and group. As root,
# chown -R tomcat:tomcat /opt/tomcat
If /opt/tomcat is a symlink to your Tomcat install directory, you'll need to do this:
# chown -R tomcat:tomcat /opt/jakarta-tomcat-5.x.xx
Verify that JAVA_HOME and CATALINA_HOME environment variables are setup for tomcat user, and you should be good to go. Once the Tomcat binaries are under Tomcat user, the way you invoke it will be different.
To start Tomcat,
# su - tomcat -c /opt/tomcat/bin/startup.sh
To stop Tomcat,
# su - tomcat -c /opt/tomcat/bin/shutdown.sh
Also, be aware that your web applications will need to be deployed (i.e. copied to the web application directories) as user tomcat, instead of root. A little more hassle, but possibly a little safer too.

Logoff Remote desktop connections Remotely

I used to receive the maximum number of connections error message when I try to log on to the Windows 2003 Server in my office via Windows Remote Desktop.
“The terminal server has exceeded the maximum number of allowed connections“

This is pretty annoying if you have some urgent work to do in the server. Most of the already logged in users won’t even be using the session at the time, but I can’t login! So how to solve this? After a bit of googling, as usual, I found a simple way to disconnect other remotely logged in sessions.

First of all you must be logged in to your client computer as a domain Admin user. Now open the command prompt and type in the following command.
qwinsta /server:SERVERIP
The Ip address or domain name of the Remote server should be entered in place of SERVERIP
Example:
qwinsta /server:10.10.1.10
You will get a list of the Remote Sessions in the command window.

In the above sceenshot we can clearly see an Active RDP session with the ID 2 which belongs to the user Administrator. In order to disconnect that user we are going to use the session ID. Use the following command line to disconnect the remote session.
rwinsta /server:SERVERIP SESSIONID
For example in order to terminate the session of the Administrator user the following command should be given.
rwinsta /server:10.10.1.10 2

Now let’s confirm if the user is really disconnected. Just type in the qwinsta command in proper format.

As you can see our session with ID 2 is no longer there. Now for the user we just disconnected will see the following message.

The remote session was disconnected because you session was logged off at the remote computer. Your administrator or another user might have ended your connection.

Friday, May 28, 2010

to enable the diabled registry by the user in Windows

REG add HKCU\Software\Microsoft\Windows\CurrentVersion\Policies\System /v DisableRegistryTools /t REG_DWORD /d 0

Then a prompt will come up with this question: Value DisableRegistryTools exists, overwrite (Y/N)? Type yes and hit Enter.

After u did that also type this command in the run box and hit enter.

REG add HKLM\Software\Microsoft\Windows\CurrentVersion\Policies\System /v DisableRegistryTools /t REG_DWORD /d 0

nagios quick start

Introduction

This guide is intended to provide you with simple instructions on how to install Nagios from source (code) on Fedora and have it monitoring your local machine inside of 20 minutes. No advanced installation options are discussed here - just the basics that will work for 95% of users who want to get started.

These instructions were written based on a standard Fedora Core 6 Linux distribution.

What You'll End Up With

If you follow these instructions, here's what you'll end up with:

* Nagios and the plugins will be installed underneath /usr/local/nagios
* Nagios will be configured to monitor a few aspects of your local system (CPU load, disk usage, etc.)
* The Nagios web interface will be accessible at http://localhost/nagios/

Prerequisites

During portions of the installation you'll need to have root access to your machine.

Make sure you've installed the following packages on your Fedora installation before continuing.

* Apache
* PHP
* GCC compiler
* GD development libraries

You can use yum to install these packages by running the following commands (as root):

yum install httpd php

yum install gcc glibc glibc-common

yum install gd gd-devel

1) Create Account Information

Become the root user.

su -l

Create a new nagios user account and give it a password.

/usr/sbin/useradd -m nagios

passwd nagios

Create a new nagcmd group for allowing external commands to be submitted through the web interface. Add both the nagios user and the apache user to the group.

/usr/sbin/groupadd nagcmd

/usr/sbin/usermod -a -G nagcmd nagios

/usr/sbin/usermod -a -G nagcmd apache

2) Download Nagios and the Plugins

Create a directory for storing the downloads.

mkdir ~/downloads

cd ~/downloads

Download the source code tarballs of both Nagios and the Nagios plugins (visit http://www.nagios.org/download/ for links to the latest versions). These directions were tested with Nagios 3.1.1 and Nagios Plugins 1.4.11.

wget http://osdn.dl.sourceforge.net/sourceforge/nagios/nagios-3.2.0.tar.gz

wget http://osdn.dl.sourceforge.net/sourceforge/nagiosplug/nagios-plugins-1.4.11.tar.gz

3) Compile and Install Nagios

Extract the Nagios source code tarball.

cd ~/downloads

tar xzf nagios-3.2.0.tar.gz

cd nagios-3.2.0

Run the Nagios configure script, passing the name of the group you created earlier like so:

./configure --with-command-group=nagcmd

Compile the Nagios source code.

make all

Install binaries, init script, sample config files and set permissions on the external command directory.

make install

make install-init

make install-config

make install-commandmode

Don't start Nagios yet - there's still more that needs to be done...

4) Customize Configuration

Sample configuration files have now been installed in the /usr/local/nagios/etc directory. These sample files should work fine for getting started with Nagios. You'll need to make just one change before you proceed...

Edit the /usr/local/nagios/etc/objects/contacts.cfg config file with your favorite editor and change the email address associated with the nagiosadmin contact definition to the address you'd like to use for receiving alerts.

vi /usr/local/nagios/etc/objects/contacts.cfg

5) Configure the Web Interface

Install the Nagios web config file in the Apache conf.d directory.

make install-webconf

Create a nagiosadmin account for logging into the Nagios web interface. Remember the password you assign to this account - you'll need it later.

htpasswd -c /usr/local/nagios/etc/htpasswd.users nagiosadmin

Restart Apache to make the new settings take effect.

service httpd restart

Note Note: Consider implementing the ehanced CGI security measures described here to ensure that your web authentication credentials are not compromised.

6) Compile and Install the Nagios Plugins

Extract the Nagios plugins source code tarball.

cd ~/downloads

tar xzf nagios-plugins-1.4.11.tar.gz

cd nagios-plugins-1.4.11

Compile and install the plugins.

./configure --with-nagios-user=nagios --with-nagios-group=nagios

make

make install

7) Start Nagios

Add Nagios to the list of system services and have it automatically start when the system boots.

chkconfig --add nagios

chkconfig nagios on

Verify the sample Nagios configuration files.

/usr/local/nagios/bin/nagios -v /usr/local/nagios/etc/nagios.cfg

If there are no errors, start Nagios.

service nagios start

8) Modify SELinux Settings

Fedora ships with SELinux (Security Enhanced Linux) installed and in Enforcing mode by default. This can result in "Internal Server Error" messages when you attempt to access the Nagios CGIs.

See if SELinux is in Enforcing mode.

getenforce

Put SELinux into Permissive mode.

setenforce 0

To make this change permanent, you'll have to modify the settings in /etc/selinux/config and reboot.

Instead of disabling SELinux or setting it to permissive mode, you can use the following command to run the CGIs under SELinux enforcing/targeted mode:

chcon -R -t httpd_sys_content_t /usr/local/nagios/sbin/

chcon -R -t httpd_sys_content_t /usr/local/nagios/share/

For information on running the Nagios CGIs under Enforcing mode with a targeted policy, visit the Nagios Support Portal or Nagios Community Wiki.

9) Login to the Web Interface

You should now be able to access the Nagios web interface at the URL below. You'll be prompted for the username (nagiosadmin) and password you specified earlier.

http://localhost/nagios/

Click on the "Service Detail" navbar link to see details of what's being monitored on your local machine. It will take a few minutes for Nagios to check all the services associated with your machine, as the checks are spread out over time.

10) Other Modifications

Make sure your machine's firewall rules are configured to allow access to the web server if you want to access the Nagios interface remotely.

Configuring email notifications is out of the scope of this documentation. While Nagios is currently configured to send you email notifications, your system may not yet have a mail program properly installed or configured. Refer to your system documentation, search the web, or look to the Nagios Support Portal or Nagios Community Wiki for specific instructions on configuring your system to send email messages to external addresses. More information on notifications can be found here.

11) You're Done

Congratulations! You sucessfully installed Nagios. Your journey into monitoring is just beginning. You'll no doubt want to monitor more than just your local machine, so check out the following docs...

* Monitoring Windows machines
* Monitoring Linux/Unix machines
* Monitoring Netware servers
* Monitoring routers/switches
* Monitoring publicly available services (HTTP, FTP, SSH, etc.)

To Enable or Disable pendrive

HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\USBSTOR proceed further.

To disable access

REGEDIT4

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\USBSTOR]
“Start”=dword:00000004

To enable access

REGEDIT4

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\USBSTOR]
“Start”=dword:00000003

X-Server troubleshootings:

Run Command:
yum groupinstall "X Window System" "KDE (K Desktop Environment)"
OR
yum install "GNOME Desktop Environment"

Nagios + SMS notifications with Gammu and Siemens MC35i

What you need :

- a working Nagios
- a GSM modem (this has been tested with a Siemens MC35i) or a cellphone with modem capabilities supported by Linux (I don’t have that)
- Gammu

Set up the modem :

Connect the GSM modem to the Nagios machine through the serial port and make sure it receives signal from the carrier (LED blinking slowly means everything is OK, if not it blinks fast)

Install and configure Gammu :

# apt-get install gammu

The modem should be accessible through /dev/ttyS0

# vim /etc/gammurc

[gammu]
port = /dev/ttyS0
connection = at19200
startinfo = no
name = Siemens
synchronizetime = no
use_locking = no

Test the modem

# gammu --identify
Manufacturer : Siemens
Model : unknown (MC35i)
Firmware : REVISION 02.00
IMEI : 3515590XXXXXX
Product code : MC35i

SIM IMSI : 2061021XXXXXX

# gammu --networkinfo
Network state : home network
Network : 206 10 (Mobistar, Belgium), LAC 6B08, CID 19EC
Name in phone : "B mobistar"

# gammu --monitor 1
Press Ctrl+C to break...
Entering monitor mode...

Enabling info about incoming SMS : No error.
Enabling info about incoming CB : No error.
Enabling info about calls : No error.

Enabling info about USSD : No error.
SIM phonebook : 59 used, 41 free
Dialled numbers : 7 used, 3 free
Received numbers : 0 used, 10 free
Missed numbers : 0 used, 10 free

Own numbers : 1 used, 2 free
Phone phonebook : 0 used, 250 free
Leaving monitor mode...

Everything looks fine !

Before we continue, let’s check permissions on /dev/ttyS0

# ls -l /dev/ttyS0
crw-rw---- 1 root dialout 4, 64 jan 5 16:14 /dev/ttyS0

Nagios is usually running as user “nagios”, so any notification command would be executed as “nagios”. We can see user nagios wouldn’t have permissions to access devices connected to /dev/ttyS0.

We’ll apply the SUID bit (set-UID) on the command in charge of sending SMS notifications, this will execute gammu on behalf of user root.

# chmod 4755 /usr/bin/gammu

We could put nagios in the dialout group as well. I didn’t as Nagios is running on an isolated box in the LAN.
If someone is able to mess up with gammu executed as SUID on that box, that would mean I’m already in a lot of troubles anyway :-)

Before we continue, we’ll try to send a SMS to the belgian cell number 0475123456

# echo "test" | gammu --sendsms TEXT 0475123456
If you want break, press Ctrl+C...
Sending SMS 1/1....waiting for network answer..OK, message reference=181

It worked.

Now, an example of Nagios config for SMS notifications :

define command{
command_name host-notify-by-sms
command_line /usr/bin/printf "%b" "NAGIOS / Host: "$HOSTNAME$" / State: $HOSTSTATE$ / Info:$HOSTOUTPUT$ / Date:$SHORTDATETIME$" | /usr/bin/gammu --sendsms TEXT $CONTACTPAGER$

}

define command{
command_name notify-by-sms
command_line /usr/bin/printf "%b" "NAGIOS / Host: "$HOSTALIAS$" / State: $SERVICESTATE$ / Info:$SERVICEOUTPUT$ / Date:$SHORTDATETIME$" | /usr/bin/gammu --sendsms TEXT $CONTACTPAGER$

}

define contact{
contact_name email
alias email
service_notification_period 24x7
host_notification_period 24x7

service_notification_options c,r
host_notification_options d,r
service_notification_commands notify-by-email
host_notification_commands host-notify-by-email
email nagios@example.org

}

define contact{
contact_name sms
alias sms
service_notification_period smshours
host_notification_period smshours

service_notification_options c,r
host_notification_options d,r
service_notification_commands notify-by-sms
host_notification_commands host-notify-by-sms
pager 0475123456

}

define contactgroup{
contactgroup_name admins
alias Nagios Administrators
members email, sms
}

define timeperiod{
timeperiod_name smshours
alias SMS Hours
sunday 00:00-24:00
monday 00:00-07:00,18:00-24:00
tuesday 00:00-07:00,18:00-24:00

wednesday 00:00-07:00,18:00-24:00
thursday 00:00-07:00,18:00-24:00
friday 00:00-07:00,18:00-24:00
saturday 00:00-24:00
}

Installation and configuration of Astrisk + voice glue

CentOS 5.2 and Asterisk 1.6.x installation

Reference: http://www.voip-info.org/wiki/view/CentOS+5+and+Asterisk+1.4.x+installation

Base Install of Asterisk on an i386 CentOS/RHEL box:
More as an aide memoir for us than anything else, but if somebody does find it useful, then that's good too!

For reasons detailed elsewhere, you're best not using a GUI, so do the installation from the command line ('linux-text' at the GRUB prompt). When you select the packages, the only one you need is 'server'. Disk partitioning, networking etc. is all entirely up to you!

At your first login, you'll be presented with a simple administration screen. Disable SELinux and (for now) the firewall.

Dependencies


The first thing to do is to get your box up to date. Try:
yum -y upgrade

and then reboot. Otherwise, to update all the installed packages, at the shell, run
yum -y update

When you've done either of the above, reboot the machine when it's finished (as it'll install a new kernel) and then run
yum -y update

again and repeat until there are no more updates.

Quick method:

Do you trust me? If so, the line below will install all the dependencies you need (and then some!) - cut and paste from here if you're happy to install things you may or may not need.
yum -y install gcc gcc-c++ kernel-devel bison \
openssl openssl-devel perl perl-Net-SSLeay perl-Crypt-SSLeay \
libtermcap-devel ncurses-devel doxygen curl-devel newt-devel \
mlocate lynx tar wget nmap bzip2 mod_ssl crontabs vixie-cron \
speex speex-devel unixODBC unixODBC-devel libtool-ltdl \
libtool-ltdl-devel mysql-connector-odbc mysql mysql-devel \
mysql-server php-mysql php-mbstring php-mcrypt flex screen


Individual application specific dependencies

Asterisk

We've got to be able to compile it!
yum -y install gcc gcc-c++

Note that you may need to use the following if you are running a Xen enabled kernel:
yum -y install kernel-xen-devel

If you want the 'zttool' application, you'll need to:
yum -y install newt-devel

Other things you may find useful (if they're not already installed):
yum -y install mlocate lynx tar wget nmap bzip2 mod_ssl crontabs vixie-cron


Speex (optional)

Speex support depends on 'speex_preprocess_ctl' which is not available in the standard Speex packages. It may be possible to compile an older version of Speex if required.

ODBC stuff (optional)

Note that if you have already installed Asterisk, you will need to run 'configure', 'make' and 'make install' to detect ODBC and compile it in.
yum -y install unixODBC unixODBC-devel libtool-ltdl libtool-ltdl-devel


MySQL ODBC interface/connector (optional, but required if using ODBC and MySQL)

yum -y install mysql-connector-odbc

And then edit the file '/etc/odbcinst.ini' (or '/usr/local/odbcinst.ini') and replace 'Driver = /usr/lib/libmyodbc.so' with 'Driver = /usr/lib/libmyodbc3.so'

MySQL (optional)

yum -y install mysql mysql-devel mysql-server
chkconfig mysqld on
service mysqld start


PHPMyAdmin (optional)

Download the latest version from http://www.phpmyadmin.net/, unzip/unbzip/untar into /var/www/htdocs/phpmyadmin (for the time being). Make sure Apache starts on boot.
yum -y install php-mysql php-mbstring php-mcrypt
chkconfig httpd on
service httpd start

Surf to https://i.p.address/phpmyadmin and check it works.

Webmin (optional)

If SSL is required, ensure that the correct bits are installed
yum -y install openssl openssl-devel perl perl-Net-SSLeay perl-Crypt-SSLeay

Download the latest version of the RPM from http://www.webmin.com/
rpm -i webmin-VERSION
chkconfig webmin on
service webmin start

Surf to https://i.p.address:10000 and check it works.

Download and install Asterisk and components

Download

Download the latest asterisk version /usr/src/asterisk and untar the files as follows:
mkdir -p /usr/src/asterisk
cd /usr/src/asterisk
wget http://downloads.asterisk.org/pub/telephony/asterisk/asterisk-1.6.1-current.tar.gz
wget http://downloads.asterisk.org/pub/telephony/asterisk/asterisk-addons-1.6.1-current.tar.gz
wget http://downloads.asterisk.org/pub/telephony/dahdi-linux-complete/dahdi-linux-complete-current.tar.gz
wget http://downloads.digium.com/pub/libpri/libpri-1.4-current.tar.gz
tar -zxf dahdi-linux-complete-current.tar.gz
tar -zxf asterisk-1.6.1-current.tar.gz
tar -zxf libpri-1.4-current.tar.gz
tar -zxf asterisk-addons-1.6.1-current.tar.gz

You'll end up with four tar files and four directories in the directory '/usr/src/asterisk'.

Libpri (optional)

If you are using E1 cards you need to install LIBPRI. If you do want to use LIBPRI, make sure you compile and install it before you compile Asterisk. Replace 'VERSION' with the correct details.
cd /usr/src/asterisk/libpri-VERSION
make clean
make
make install


DAHDI

You're pretty much going to need DAHDI. If not for any hardware then for the dummy timer anyway. Note that the stock CentOS kernels come with a 1000HZ timer and so don't need recompiling (phew!). Replace 'VERSION' with the correct details.
cd /usr/src/asterisk/dahdi-linux-complete-VERSION
make all
make install
make config

Edit /etc/dahdi/modules, /etc/dahdi/system.conf and /etc/asterisk/chan_dahdi.conf for your site.
Set DAHDI to start automatically and then start it.
chkconfig dahdi on
service dahdi start


Asterisk

cd /usr/src/asterisk/asterisk-VERSION
make clean
./configure

Choose which options to install (audio files, voicemail storage, codecs etc.)
make menuselect
make
make install

Install sample files in /etc/asterisk, install docs/manpages and set to start on boot.
make samples
make progdocs
make config
chkconfig asterisk on

Check Asterisk starts properly:
asterisk -vvvvvvvvvvvvvvvvvvvc
stop now

If not, you've probably not been following these instructions carefully! Assuming it does start properly, you probably want to start it in the background:
service asterisk start


Asterisk-addons

cd /usr/src/asterisk/asterisk-addons-VERSION

make clean
./configure
make menuselect

Choose what you do and don't want. Unless you really need oh323, deselect it as it can be the cause of compilation woes.
make
make install

Install sample files in /etc/asterisk
make samples

Edit /etc/asterisk/cdr_mysql.conf and add 'loguniqueid=yes' to the global section.

mISDN drivers for Digium B410P (optional)

Removed - have yet to test installation with DAHDI



Configure MySQL (optional)

The information below shows table definitions for all of the tables Asterisk can use with MySQL or ODBC.

Notes

The UniqueID field in the CDR table is not necessarily unique! Due to the very very dodgy way Asterisk handles unique IDs, if you set the field to be the primary key (as advised elsewhere), you will lose data.

SQL

Note that the SIP 'qualify' field has a default value set to 'yes'. This is for two reasons. Firstly, I wrote these notes because it's how I use and want to use Asterisk. Secondly, whether qualification is enabled or not in realtime is controlled by the 'rtcachefriends' setting in sip.conf - if it's 'no', then whether 'qualify' is 'yes' or 'no' in the database is irrelevant. It makes sense therefore to enable it in the database and then turn it on or off with the 'rtcachefriends' setting.

SET SQL_MODE="NO_AUTO_VALUE_ON_ZERO";

##
##Database: `asterisk`
##
CREATE DATABASE `asterisk` DEFAULT CHARACTER SET latin1 COLLATE latin1_swedish_ci;
USE `asterisk`;

##########################################################

##
##Table structure for table `cdr`
##

CREATE TABLE IF NOT EXISTS `cdr` (
`recid` mediumint(8) unsigned NOT NULL auto_increment COMMENT 'Record ID',
`calldate` datetime NOT NULL default '0000-00-00 00:00:00',
`clid` varchar(80) NOT NULL default '',
`src` varchar(80) NOT NULL default '',
`dst` varchar(80) NOT NULL default '',
`dcontext` varchar(80) NOT NULL default '',
`channel` varchar(80) NOT NULL default '',
`dstchannel` varchar(80) NOT NULL default '',
`lastapp` varchar(80) NOT NULL default '',
`lastdata` varchar(80) NOT NULL default '',
`duration` int(11) NOT NULL default '0',
`billsec` int(11) NOT NULL default '0',
`disposition` varchar(45) NOT NULL default '',
`amaflags` int(11) NOT NULL default '0',
`accountcode` varchar(20) NOT NULL default '',
`uniqueid` varchar(32) NOT NULL default '',
`userfield` varchar(255) NOT NULL default '',
PRIMARY KEY (`recid`),
KEY `calldate` (`calldate`),
KEY `dst` (`dst`),
KEY `accountcode` (`accountcode`),
KEY `src` (`src`),
KEY `disposition` (`disposition`),
KEY `uniqueid` (`uniqueid`)
) ENGINE=InnoDB DEFAULT CHARSET=latin1 AUTO_INCREMENT=1 ;

##########################################################

##
##Table structure for table `queue_members`
##

CREATE TABLE IF NOT EXISTS `queue_members` (
`queue_name` varchar(128) NOT NULL default '',
`interface` varchar(128) NOT NULL default '',
`penalty` int(11) default NULL,
PRIMARY KEY (`queue_name`,`interface`)
) ENGINE=MyISAM DEFAULT CHARSET=latin1;

##########################################################

##
##Table structure for table `queues`
##

CREATE TABLE IF NOT EXISTS `queues` (
`name` varchar(128) NOT NULL,
`musiconhold` varchar(128) default 'default',
`announce` varchar(128) default NULL,
`context` varchar(128) default NULL,
`timeout` int(11) default '60',
`monitor_join` tinyint(1) default NULL,
`monitor_format` varchar(128) default NULL,
`queue_youarenext` varchar(128) default NULL,
`queue_thereare` varchar(128) default NULL,
`queue_callswaiting` varchar(128) default NULL,
`queue_holdtime` varchar(128) default NULL,
`queue_minutes` varchar(128) default NULL,
`queue_seconds` varchar(128) default NULL,
`queue_lessthan` varchar(128) default NULL,
`queue_thankyou` varchar(128) default NULL,
`queue_reporthold` varchar(128) default NULL,
`announce_frequency` int(11) default NULL,
`announce_round_seconds` int(11) default NULL,
`announce_holdtime` varchar(128) default NULL,
`periodic_announce` varchar(128) default NULL,
`periodic_announce_frequency` int(11) default NULL,

`retry` int(11) default '5',
`ringinuse` varchar(5) NOT NULL default 'no',
`autofill` varchar(5) NOT NULL default 'yes',
`autopause` varchar(5) NOT NULL default 'no',
`setinterfacevar` varchar(5) NOT NULL default 'yes',
`wrapuptime` int(11) default '30',
`maxlen` int(11) default NULL,
`servicelevel` int(11) default NULL,
`strategy` varchar(128) default 'ringall',
`joinempty` varchar(128) default 'no',
`leavewhenempty` varchar(128) default 'yes',
`eventmemberstatus` tinyint(1) default NULL,
`eventwhencalled` tinyint(1) default NULL,
`reportholdtime` tinyint(1) default NULL,
`memberdelay` int(11) default NULL,
`weight` int(11) default NULL,
`timeoutrestart` tinyint(1) default NULL,
PRIMARY KEY (`name`)
) ENGINE=MyISAM DEFAULT CHARSET=latin1;

##########################################################

##
##Table structure for table `sip`
##

CREATE TABLE IF NOT EXISTS `sip` (
`id` int(11) NOT NULL auto_increment,
`name` varchar(80) NOT NULL,
`host` varchar(31) NOT NULL default 'dynamic',
`nat` varchar(5) NOT NULL default 'no',
`type` enum('user','peer','friend') NOT NULL default 'friend',
`accountcode` varchar(20) default 'ACCOUNT',
`amaflags` varchar(13) default NULL,
`callgroup` varchar(10) default NULL,
`callerid` varchar(80) default NULL,
`call-limit` varchar(6) NOT NULL default '10',
`cancallforward` char(3) default 'yes',
`canreinvite` char(3) default 'no',
`context` varchar(80) default 'from-sip',
`defaultip` varchar(15) default NULL,
`dtmfmode` varchar(7) default 'rfc2833',
`fromuser` varchar(80) default NULL,
`fromdomain` varchar(80) default NULL,
`insecure` varchar(4) default NULL,
`language` char(2) default 'en',
`mailbox` varchar(50) default NULL,
`md5secret` varchar(80) default NULL,
`deny` varchar(95) default '0.0.0.0/0.0.0.0',
`permit` varchar(95) default '0.0.0.0/0.0.0.0',
`mask` varchar(95) default NULL,
`musiconhold` varchar(100) default 'default',
`pickupgroup` varchar(10) default NULL,
`qualify` char(3) default 'yes',
`regexten` varchar(80) default NULL,
`restrictcid` char(3) default NULL,
`rtptimeout` char(3) default NULL,
`rtpholdtimeout` char(3) default NULL,
`secret` varchar(80) default 'SECRET',
`setvar` varchar(100) default NULL,
`disallow` varchar(100) default 'all',
`allow` varchar(100) default 'alaw',
`fullcontact` varchar(80) NOT NULL default '',
`ipaddr` varchar(15) NOT NULL default '',
`port` smallint(5) unsigned NOT NULL default '0',
`regserver` varchar(100) default NULL,
`regseconds` int(11) NOT NULL default '0',
`username` varchar(80) NOT NULL,
`defaultuser` varchar(80) NOT NULL,
PRIMARY KEY (`id`),
UNIQUE KEY `name` (`name`),
KEY `name_2` (`name`)
) ENGINE=MyISAM DEFAULT CHARSET=latin1 ROW_FORMAT=DYNAMIC AUTO_INCREMENT=301 ;

##########################################################

##
##Table structure for table `voicemail_messages`
##

CREATE TABLE IF NOT EXISTS `voicemail_messages` (
`id` int(11) NOT NULL auto_increment,
`msgnum` int(11) NOT NULL default '0',
`dir` varchar(80) default '',
`context` varchar(80) default '',
`macrocontext` varchar(80) default '',
`callerid` varchar(40) default '',
`origtime` varchar(40) default '',
`duration` varchar(20) default '',
`mailboxuser` varchar(80) default '',
`mailboxcontext` varchar(80) default '',
`recording` longblob,
PRIMARY KEY (`id`),
KEY `dir` (`dir`)
) ENGINE=MyISAM DEFAULT CHARSET=latin1 AUTO_INCREMENT=1088 ;

##########################################################

##
##Table structure for table `voicemail_users`
##

CREATE TABLE IF NOT EXISTS `voicemail_users` (
`uniqueid` int(11) NOT NULL auto_increment,
`customer_id` varchar(11) NOT NULL default '0',

`context` varchar(50) NOT NULL default 'default',
`mailbox` varchar(11) NOT NULL default '0',
`password` varchar(5) NOT NULL default '6666',
`fullname` varchar(150) NOT NULL,
`email` varchar(50) NOT NULL,
`pager` varchar(50) NOT NULL,
`tz` varchar(10) NOT NULL default 'en',
`attach` varchar(4) NOT NULL default 'yes',
`saycid` varchar(4) NOT NULL default 'yes',
`dialout` varchar(10) NOT NULL,
`callback` varchar(10) NOT NULL,
`review` varchar(4) NOT NULL default 'no',
`operator` varchar(4) NOT NULL default 'no',
`envelope` varchar(4) NOT NULL default 'no',
`sayduration` varchar(4) NOT NULL default 'no',

`saydurationm` tinyint(4) NOT NULL default '1',
`sendvoicemail` varchar(4) NOT NULL default 'no',
`delete` varchar(4) NOT NULL default 'no',
`nextaftercmd` varchar(4) NOT NULL default 'yes',
`forcename` varchar(4) NOT NULL default 'no',
`forcegreetings` varchar(4) NOT NULL default 'no',
`hidefromdir` varchar(4) NOT NULL default 'yes',
`stamp` timestamp NOT NULL default CURRENT_TIMESTAMP on update CURRENT_TIMESTAMP,
PRIMARY KEY (`uniqueid`),
KEY `mailbox_context` (`mailbox`,`context`)
) ENGINE=MyISAM DEFAULT CHARSET=latin1 AUTO_INCREMENT=101 ;

## ########################################################

##
##Create realtime user with approximately the right privs.
##

CREATE USER 'astrealtime'@'localhost' IDENTIFIED BY 'MYPASS';
GRANT FILE ON * . * TO 'astrealtime'@'localhost' IDENTIFIED BY 'MYPASS' WITH MAX_QUERIES_PER_HOUR 0 MAX_CONNECTIONS_PER_HOUR 0 MAX_UPDATES_PER_HOUR 0 MAX_USER_CONNECTIONS 0 ;
GRANT INSERT ON `asterisk`.`cdr` TO 'astrealtime'@'localhost';
GRANT SELECT , INSERT , UPDATE , DELETE ON `asterisk`.`queue_members` TO 'astrealtime'@'localhost';
GRANT SELECT , UPDATE ON `asterisk`.`queues` TO 'astrealtime'@'localhost';
GRANT SELECT , UPDATE ON `asterisk`.`sip` TO 'astrealtime'@'localhost';
GRANT SELECT , UPDATE ON `asterisk`.`voicemail_users` TO 'astrealtime'@'localhost';
GRANT SELECT , UPDATE , INSERT , DELETE ON `asterisk`.`voicemail_messages` TO 'astrealtime'@'localhost';

Configure various files

Set up CDR to MySQL

Edit /etc/asterisk/cdr_mysql.conf
[global]
hostname=localhost
dbname=asterisk
table=cdr
password=MYPASS
user=astrealtime
port=3306
sock=/var/lib/mysql/mysql.sock
userfield=1

Set up realtime

Edit res_mysql.conf
[general]
dbhost = localhost
dbname = asterisk
dbuser = astrealtime
dbpass = MYPASS
dbport = 3306
dbsock = /var/lib/mysql/mysql.sock

If you are using version 1.6.0 or lower

Edit /etc/asterisk/extconfig.conf
[settings]
queues => mysql,asterisk,queues
queue_members => mysql,asterisk,queue_members
sippeers => mysql,asterisk,sip
sipusers => mysql,asterisk,sip
voicemail => mysql,asterisk,voicemail_users

If you are using version 1.6.1 or higher

Edit /etc/asterisk/extconfig.conf
[settings]
queues => mysql,general,queues
queue_members => mysql,general,queue_members
sippeers => mysql,general,sip
sipusers => mysql,general,sip
voicemail => mysql,general,voicemail_users

ODBC configuration (using settings from above)

/etc/odbcinst.ini

[MySQL]
Description = ODBC for MySQL
Driver = /usr/lib/libmyodbc3.so
;For x64 systems
;Driver = /usr/lib64/libmyodbc3.so
Setup = /usr/lib/libodbcmyS.so
FileUsage = 1
(Note the '3' which isn't in the original sample file!)

/etc/odbc.ini

; DSN definitions
[astrealtime]
Description = Asterisk realtime and other FUNC_ODBC access
Driver = MySQL
Socket = /var/lib/mysql/mysql.sock
Server = localhost
User = astrealtime
Pass = MYPASS
Database = asterisk
Option = 3

/etc/asterisk/res_odbc.conf

; Environment variables
[ENV]

; Connections
[astrealtime]
enabled => yes
dsn => astrealtime
username => astrealtime
password => MYPASS
pre-connect => yes
idlecheck => 3600

/etc/asterisk/func_odbc.conf

This really depends on why you need database access from the dialplan!


Setting up Asterisk on a vserver

Removed - have yet to test installation with DAHDIn



NOTE:
cspan is like yum but only to install PERL modules


Installing Voiceglue: Two Ways

There are two ways to install Voiceglue. The easy way, and the hard way. The easy was has the advantage of being, well, easy, but has the disadvantage of supporting only a small number of configurations and a small number of platforms. The hard way is, well, harder, but has the advantage of potentially being able to support any unix-y system in arbitrary configurations.
If you're fine with running Voiceglue on the same box as Asterisk and are going to run it on Ubuntu 8.04 or 8.10 or Fedora 9 or 10, then by all means try the easy method.

The Easy Way

The easy way is mostly automatic. Voiceglue provides a script that should get everything installed and running in one shot. Before the script can run, however, you have to do some preparation work.

Prerequisites

The prerequisites must be satisfied before installing Voiceglue.

Supported Platform

You must be installing on one of the following platforms:
  • Ubuntu 8.04 (Hardy)
  • Ubuntu 8.10 (Intrepid)
  • Ubuntu 9.04 (Jaunty)
  • Fedora 9
  • Fedora 10
Voiceglue has been tested and runs on both 32-bit and 64-bit versions of these OSes.

Asterisk Installed

You must have Asterisk installed somehow. The Voiceglue installer doesn't check for an asterisk package, so it's fine to install it from source if you want to.
Supported versions of Asterisk are:
  • Asterisk 1.2
  • Asterisk 1.4
  • Asterisk 1.6

The "asterisk" user

The “asterisk” user must be present. This user is what the voiceglue process runs as because it needs to share audio files with Asterisk. It is legal, even with the easy way, to have Asterisk installed on a separate machine from Voiceglue, but the “asterisk” user must be present on the voiceglue host, and should match the uid/gid of the “asterisk” user on the Asterisk host.

Required Packages

There are several software packages that Voiceglue requires. The installer looks for them as packages in the system (debs for Ubuntu, rpms for Fedora) so they must be installed that way. For Ubuntu you use apt/synaptic, for Fedora you use yum/yumex. Here's the list of what's required on each of the supported platforms:
Package Ubuntu 8.04 Ubuntu 8.10 - 9.04 Fedora 9 or 10
gcc/g++ gcc g++ gcc g++ gcc-c++
libc++

libstdc++-devel
xerces-c libxerces28-dev libxerces-c2-dev xerces-c-devel
SpiderMonkey libmozjs-dev libmozjs-dev xulrunner-devel
flite flite flite flite
sox sox sox sox
libsox-fmt-alllibsox-fmt-alllibsox-fmt-all
wget wget wget wget
openssl libssl-dev libssl-dev openssl-devel
XML ::LibXML libxml-libxml-perl libxml-libxml-perl perl- XML -LibXML
BSD::Resource libbsd-resource-perl libbsd-resource-perl perl-BSD-Resource
Module::Build libmodule-build-perl libmodule-build-perl perl-Module-Build
FFTW 3 libfftw3-dev libfftw3-dev fftw-devel
Test::More

perl-Test-Base
pkg-config pkg-config pkg-config pkgconfig
If an entry is blank, it means I didn't have to install that package from a base system because it was already present, so you probably won't have to either.

Download and Unpack Voiceglue

After prerequisites are installed, download and upack the voiceglue distribution. It can always be found at http://voiceglue.org by clicking on the “Download” tab at the top.
I'm assuming that downloading and unpacking a tar file is not hard for a voiceglue user. After all, you installed Asterisk.

Running the install script

From within the top-level voiceglue directory (the one containing doc), run the following command as root:
doc/install-voiceglue
It first checks the prerequisites listed above, then if those are satisfied, builds and installs all of the software required for Voiceglue. Check the output for errors.
After the script runs to completion,. you should have the following services ready to run with their init scripts in /etc/init.d/:
  • dynlog
  • phoneglue
  • voiceglue
These scripts can be called manually (but don't until you read the user guide), however it's more common to let them run automatically on system boot. On Fedora systems, you may need to run chkconfig to activate them on at boot-time.
These services must be brought up in the order shown above, and brought down in the reverse order. Their install scripts will do this automatically on system startup and shutdown.

Uninstalling voiceglue

If you want to get rid of everything that voiceglue installed (which can be useful for re-installs too in case you're using something like checkinstall to create packages and you want all files re-installed even if they didn't change) you can run the supplied uninstall script.
From within the top-level voiceglue directory (the one containing doc), run the following command as root:
doc/uninstall-voiceglue

The Hard Way

Prerequisites

The prerequisites are the same as for the easy way, except that you are not necessarily restricted to the platforms listed there, and the software packages don't necessarily need to be installed as the package format of choice for the distribution.

Voiceglue Contents

The Voiceglue distribution contains the following top-level directories:
Directory Contents
Cam-Scom perl library for IPC
doc documentation and install script
dynlog perl programs providing unified log collection
libvglue voiceglue C/C++ libraries
openvxi-3.4+vglue voiceglue-modified openvxi 3.4 C/C++ library
phoneglue perl program providing high-level Asterisk interface
Satc perl library for phoneglue communication
SRGSDTMF perl library for processing SRGS DTMF grammars
Vgluefftw perl library for FFTW access
voiceglue perl program providing voiceglue interface
Voiceglue-Conf perl library for voiceglue configuration
Vxglue perl library for interfacing to openvxi
Each of these items (except doc) must be installed.

Installing Voiceglue

The order in which the software components must be installed is:
  1. Cam-Scom
  2. dynlog
  3. Vgluefftw
  4. Satc
  5. Voiceglue-Conf
  6. phoneglue
  7. SRGSDTMF
  8. libvglue-headers
  9. openvxi-3.4+vglue
  10. libvglue
  11. Vxglue
  12. voiceglue

Installing Perl Libraries

Each perl library can be installed with the following sequence of actions:
  1. Change to that directory
  2. Run: perl Build.PL
  3. Run: ./Build install

Installing Programs

Each program can be installed with the following sequence of actions:
  1. Change to that directory
  2. Determine which Makefile is appropriate for your situation
  3. Run: make -f Makefile install

Installing libvglue-headers

The libvglue software is installed in two steps. The first step installs just the headers:
  1. Change to that directory
  2. Run: make install-headers

Installing libvglue

When it's time to install libvglue binaries, do:
  1. Change to that directory
  2. Run: make install

Installing openvxi-3.4+vglue

This is the most challenging install step, as it consists of a large number of C/C++ modules that have dependencies on several system libraries.
First, look at the exports file at the top level. It contains the following definitions:
  • SWISBSDK - The top-level directory of OpenVXI
  • XERCESDIR - The directory containing the Xerces-C distribution
  • SPIDERMONKEYDIR - The directory containing the Mozilla SpiderMonkey distribution
  • JSCFLAGS - The CFLAGS used for compiling against SpiderMonkey
  • JSLIBFLAGS - The library flags for linking against SpiderMonkey
These definitions have to all be correct and loaded into environment variables for the following steps to work.
Next, look at the build-openvxi script in the same top-level directory. It encodes the steps to build OpenVXI. Hopefully, with proper settings in exports, it will run successfully.
Finally, the install-openvxi script in the same top-level directory installs the compiled OpenVXI library files and runtime support files to their system destinations.



NOTE:
Enable Manager in /etc/astrisk/manager.conf by making " enable=yes " (so that manager will enable)

how tostart VNCserver

Overview of VNC

VNC, or Virtual Networked Computing, is a way of controlling a remote computer just as though you are sitting in front of it. In the Windows world it
is also known as remote desktop but it's normally referred to as VNC in the Linux world. All that happens is that you connect using a VNC client to a
remote computer running the VNC server, then an image of the remote desktop is transmitted to your local computer and you can see and control the desktop
just as though you are there since all keyboard and mouse commands are sent from your client machine to the server.

Gnome Remote Desktop

If you are running the Gnome desktop on Fedora Core then you already have a VNC server built in. Click on the Fedora icon > Desktop > Preferences >
Remote Desktop to open the dialog shown.

Gnome remote desktop

The screen is pretty self explanatory but basically when set up this way another computer can connect to your computer using the command listed on
the dialog. There are a few important things to note, you must open port 5900 on the server for this to work since by default the Gnome Remote
Desktop (called vino) listens on this port, also the person connecting will see the same session that you are currently logged in as. This means that
any programs you have open will also be visible to the client, of course this is very useful if you are helping someone remotely.

A more flexible way to use VNC is to install the VNC server and client software via yum, these are rpm's based on
RealVNC.


vncserver and vncviewer

Check what's installed

First check if you already have them installed on your system, open a terminal and type:

$ rpm -qa|grep vnc
vnc-server-4.1.1-36
vnc-4.1.1-36


If you get an output something like this then you're all ready, if not you need to install them via yum.

Add a user(s)

Next we need to add at least 1 VNC user, open the file /etc/sysconfig/vncservers as root and add the information shown:

$ vi /etc/sysconfig/vncservers

# The VNCSERVERS variable is a list of display:user pairs.
#
# Uncomment the lines below to start a VNC server on display :2
# as my 'myusername' (adjust this to your own). You will also
# need to set a VNC password; run 'man vncpasswd' to see how
# to do that.
#
# DO NOT RUN THIS SERVICE if your local area network is
# untrusted! For a secure way of using VNC, see
# .

# Use "-nolisten tcp" to prevent X connections to your VNC server via TCP.

# Use "-nohttpd" to prevent web-based VNC clients connecting.

# Use "-localhost" to prevent remote VNC clients connecting except when
# doing so through a secure tunnel. See the "-via" option in the
# `man vncviewer' manual page.

VNCSERVERS="1:bobpeers"
VNCSERVERARGS[1]="-geometry 1024x768 -depth 16"


The important part is the VNCSERVERS="1:bobpeers", this sets up a users for the vnc server, you can add as many as you like here. The VNCSERVERARGS[1]
line refers to the arguments for user 1, in this case the only user. Geometry sets the size and depth sets the colour depth, you can adjust these to
suit your preferences but in my case the client machine has a resolution of 1024x768 and the depth 16 makes the connection a bit faster since the less
information that needs to be sent the more responsive the session will feel.

Knowing which port to use

It's also important to note the session number user as this will tell us which port vncserver will listen on. Remember the Gnome Remote Desktop
asked us to use computername:0 as the connection string, the number needs to be added to 5900 to get the listening port. In this case we need to use
port 5901 since we are using session 1. In the same way we could use any number, for example:

VNCSERVERS="2000:bobpeers"
VNCSERVERARGS[2000]="-geometry 1024x768 -depth 16"


In this case we need to use port 5900+2000 so port 7900.

Setting a password

To add some security we need to add a password that must be given before a connection can be established, open a terminal and type:

$ vncpasswd
Password:
Verify:


This creates a hidden folder called .vnc in your home folder containing the password file.

Starting the server and startup options

To start the server we type the command 'vncserver' and the session you wish to start (if you have set up more than 1 entry in the
/etc/sysconfig/vncservers file:

$ vncserver :1
Starting VNC server: 1:bobpeers
New 'linux.bobpeers:1 (bobpeers)' desktop is linux.bobpeers:1

Starting applications specified in /home/bobuser/.vnc/xstartup
Log file is /home/bobuser/.vnc/linux.bobpeers:1.log

[ OK ]


Now the server is started and a user could connect, however they will get a plain grey desktop by default as the connection will not cause a new
session of X to start by default, to fix this we need to edit the startup script in the .vnc folder in your home directory.

$ vi ~/.vnc/xstartup

#!/bin/sh

# Uncomment the following two lines for normal desktop:
unset SESSION_MANAGER
exec /etc/X11/xinit/xinitrc

[ -x /etc/vnc/xstartup ] && exec /etc/vnc/xstartup
[ -r $HOME/.Xresources ] && xrdb $HOME/.Xresources
xsetroot -solid grey
vncconfig -iconic &
xterm -geometry 80x24+10+10 -ls -title "$VNCDESKTOP Desktop" &
twm &


As the file says make sure the two lines at the top are uncommented by removing the leading # sign. Next we need to restart vncserver to pick up
the changed we just made. To restart the vncserver we need to kill the process and start a new one as root:

$ vncserver -kill :1
Killing Xvnc process ID 13728


$ vncserver :1
Starting VNC server: 1:bobpeers
New 'linux.bobpeers:1 (bobpeers)' desktop is linux.bobpeers:1

Starting applications specified in /home/bobuser/.vnc/xstartup
Log file is /home/bobuser/.vnc/linux.bobpeers:1.log

[ OK ]


Using vncviewer

To start the viewer type:

$ vncviewer localhost:5901


This open a dialog as shown for us to enter our password we set earlier, enter the password and you should now see a copy of your desktop. Note
that unlike the Gnome Remote Desktop this has started a new session of X so any applications open on the host machine are not visible to the new
session, it's basically a whole new logon running at the same time.

If you just type 'vncviewer' at the prompt then you will asked for the host to connect to, then you can type localhost:5901 for example.
Remember to use the correct port number when connecting, if you set your VNCSERVERS to be 2000:myname then you would need to connect on localhost:7900.

VNCVIEWER logon

Stopping the vncserver

There are two ways to stop the server, either as root:

$ /sbin/service vncserver stop
Shutting down VNC server: 1:bobpeers [ OK ]


or you can explicitly kill a particular session without being root:

$ vncserver -kill :1
Killing Xvnc process ID 13728


Just replace the 1 with the vnc session you wish to stop.

Allowing remote connections

So far we have only connected to our own computer using localhost so we have not needed to open any ports in the firewall, however if we want to
allow remote connection we will have to do the following. This can either be done from the command line or using system-config-security if you have
it installed.

Using system-config-security to opens ports.

First we'll look into the GUI system-config-security. Go to the Fedora start menu > Desktop > Administration >
Security Level and Firewall, then type your root password when prompted to see this:

system-config-security

Click on other ports at the bottom and enter the port you wish to open, 5901 in my case, select tcp, then click OK and OK again to save your
settings. That's all there is to it, but remember to close the port again when you are finished.

Select the port to open

Editing the iptables manually to opens ports.

To do the same from the command line add the line in bold to the file /etc/sysconfig/iptables while logged in as root:

# Firewall configuration written by system-config-securitylevel
# Manual customization of this file is not recommended.
*filter
:INPUT ACCEPT [0:0]
:FORWARD ACCEPT [0:0]
:OUTPUT ACCEPT [0:0]
:RH-Firewall-1-INPUT - [0:0]
-A INPUT -j RH-Firewall-1-INPUT
-A FORWARD -j RH-Firewall-1-INPUT
-A RH-Firewall-1-INPUT -i lo -j ACCEPT
-A RH-Firewall-1-INPUT -p icmp --icmp-type any -j ACCEPT
-A RH-Firewall-1-INPUT -p 50 -j ACCEPT
-A RH-Firewall-1-INPUT -p 51 -j ACCEPT
-A RH-Firewall-1-INPUT -p udp --dport 5353 -d 224.0.0.251 -j ACCEPT
-A RH-Firewall-1-INPUT -p udp -m udp --dport 631 -j ACCEPT
-A RH-Firewall-1-INPUT -p tcp -m tcp --dport 631 -j ACCEPT
-A RH-Firewall-1-INPUT -m state --state ESTABLISHED,RELATED -j ACCEPT
-A RH-Firewall-1-INPUT -m state --state NEW -m tcp -p tcp --dport 5901 -j ACCEPT
-A RH-Firewall-1-INPUT -j REJECT --reject-with icmp-host-prohibited
COMMIT


Finally we need to restart the iptables service to reload the changes.

$ sudo /sbin/service iptables restart
Flushing firewall rules: [ OK ]
Setting chains to policy ACCEPT: filter [ OK ]
Unloading iptables modules: [ OK ]
Applying iptables firewall rules: [ OK ]
Loading additional iptables modules: ip_conntrack_netbios_n[ OK ]


Connecting from the remote machine.

Now from the remote client computer start up vncviewer but this time use the IP address of the host computer followed by the port number. So on my
home network this might be:

$ vncviewer 192.168.1.105:5901


You should see a copy of the hosts desktop, if things seem a bit slow you can try adjusting the colour depth or screen resolution on the vncserver
to see if that helps.


METHOD 2::::



What is VNCserver?

VNC stands for Virtual Network Computing. It was originally developed by AT&T as a way to administer machines without using the console. If you have used Windows Terminal Services (RDP), VNC will seem very familiar.

Why use VNCserver?

In Linux, everything can be done from a shell. However, there may be a time when you need to access the machine as if you were at the console.

Getting Started

You will need several things to get started:
  • root privledges
  • VNC client software (tightVNC, you can download it here.)
  • A good password!
As I mentioned above, this example is done with RHEL, which comes standard with VNCserver installed. To start the vncserver simply invoke the following commands:
[root@roswell etc]# service vncserver start
Starting VNC server: [ OK ]
[root@roswell etc]#
[root@roswell etc]# vncpasswd
Password:
Verify:
[root@roswell etc]#
[root@roswell etc]# vncserver

New 'roswell:1 (root)' desktop is roswell:1

Starting applications specified in /root/.vnc/xstartup
Log file is /root/.vnc/roswell:1.log

[root@roswell etc]#




So what did we do there? First, we started the vncserver service. It may or may not have already been running on your system. Next we set a password to access the VNC desktop. When you set the password, you will not see any characters on the screen, and you must enter the password twice. You will only need to do this the very first time you run vncserver. The password will be saved in the Linux filesystem, and you can change it at any time by invoking the vncpasswd command again. Last, to activate the VNC desktop, we simply invoked the vncserver command. Notice the output; the desktop is named "roswell:1" which can also be replaced via the machines IP address.

Connecting

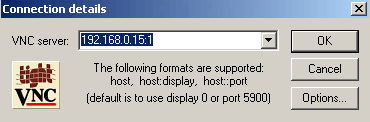

Assuming you already installed TightVNC or another VNC client, enter the desktop name:



You can replace the server name with an IP address if you are logging in from outside your LAN. Remember, if you are using NAT port 5900 must be forwarded to your VNCserver.



Upon successful connection, you will be prompted for a password. You will then see a terminal screen that will allow you to execute commands:



VNCserver in Runlevel 5 (KDE or Gnome)

If you are new to linux, running VNC server with a terminal isn't going to do you much good. You might want to have a menu-driven GUI like Windows. No problem. Follow these steps:


First, we are going to assume that VNCserver is running under the root user, as shown with the example above. For this example, I will be editing my VNCserver to enter Gnome. You can specify a KDE desktop if you have KDE installed on your server. Make sure you are in the root directory.
[root@roswell ~]# ls -a
. cacti-0.8.6c.tar.gz .gnome2_private .lftp queue.dat temp
.. client.cfg .gnupg machinedependent.dat .recently-used Templates
.config FAHlog-Prev.txt .gstreamer-0.8 .metacity .rhn-applet.cache .themes
.cshrc FAHlog.txt .gtkrc .mozilla .rhn-applet.conf .thumbnails
.bash_history Desktop .fonts.cache-1 .gtkrc-1.2-gnome2 .rnd .Trash
.bash_logout .dmrc .gconf .ICEauthority .mysql_history scripts
.bash_profile .eggcups .gconfd .icons .nautilus .sh_history
.viminfo
.bashrc .bashdevl .esd_auth .gnome php-4.11
.ssh .vnc cacti-0.8.6c .gnome2 install.log
[root@roswell ~]# cd .vnc
[root@roswell .vnc]# ls
passwd roswell:1.pid roswell:2.pid roswell:3.pid roswell:4.pid roswell:5.pid roswell.area51.lan:1.pid
roswell:1.log roswell:2.log roswell:3.log roswell:4.log roswell:5.log roswell.area51.lan:1.log roswell.area51.lan:2.log
xstartup
[root@roswell .vnc]# vi xstartup


Using vi (vim) to edit the xstartup file, make sure your file matches this one:


#!/bin/sh

# Uncomment the following two lines for normal desktop:
unset SESSION_MANAGER
exec /etc/X11/xinit/xinitrc

[ -x /etc/vnc/xstartup ] && exec /etc/vnc/xstartup
[ -r $HOME/.Xresources ] && xrdb $HOME/.Xresources
xsetroot -solid grey
vncconfig -iconic &
xterm -geometry 80x24+10+10 -ls -title "$VNCDESKTOP Desktop" &
startx &


Notice that the last line is "startx &" as this command will launch Gnome upon login via VNCserver. If you are using a KDE desktop, the line "startkde &" should replace the last line.

Logging in, you will be presented with a Gnome or KDE desktop.

Step by Step Installing Oracle Database 10g Release 2 on Linux (CentOS) and AUTOMATE the installation using Linux Shell Script

In order to use Oracle Database, first of all we need to setup Oracle Software. Installation of Oracle Database on Windows is very easy. By running setup.exe from installation CD of Oracle for Windows, we can invoke a setup and by clicking NEXT buttons we can install Oracle Software and Database without any problem. We don’t need any prerequisite actions before installation. But in Linux it’s different. If we want to install Oracle Database on Linux OS, we should follow some prerequisite actions.

Today, we’re going to install Oracle Database on CentOS. To do it, we use last version of CentOS (the latest release for now) – “CentOS-5.2” and mostly used release of Oracle Database – “Oracle Database 10g Release 2”. And we’re going to practice this whole project on VMware 6.0.0

Before starting, we need to install VMware. Then, we need to install CentOS on VMware. After that, we are going to install Oracle Database. You should refer to my previous posts in order to install VMware and Centos

Step by step installing VMware

Step by Step Installing CentOS on VMware

But there’s one thing we should keep in mind. During installation of CentOS, on the “package lists” page, we should behave differently. It will be discussed in the next paragraphs.

This project covers following steps:

1. Checking minimum hardware requirements

2. Installing rpm packages which are required for Oracle installation

3. Configuring kernel parameters

4. Creating groups and user for Oracle Installation

5. Installing Oracle Software

6. Creating an Oracle Database

7. Connecting to Database with Enterprise Manager

8. AUTOMATING all processes and steps of installation Oracle 10g R2 on Centos using Shell Script

As you see from the list above, in order to setup Oracle Database, we need to change some parameters in the system. Changing these parameters each time could lead to mistakes and waste of time. The main purpose of our article is to automate all these processes and save your time. For this purpose we’re going to use “Shell Script”

Now I’m going to explain above mentioned steps one by one

1. Checking minimum hardware requirements

At least, your system should meet the following requirements:

- 1GB RAM

- Requirement for swap space in Oracle installation is as follows:

Available RAM Swap Space Required

Between 1 GB and 2 GB 1.5 times the size of RAM

Between 2 GB and 8 GB Equal to the size of RAM

More than 8 GB .75 times the size of RAM

- 400MB free space in /tmp directory

- Depending on type of the installation, 1.5-3.5 GB free space for Oracle Software

- 1.5GB free space if new Oracle Database is created

Getting familiar with requirements mentioned above, we need to get hardware information of our system. To check the size of RAM, Swap space and tmp directory, we run these commands:

- To check the size of physical memory, execute grep MemTotal /proc/meminfo

- To check the size of swap space, execute grep SwapTotal /proc/meminfo

- To check the space in /tmp directory, execute df –h /tmp

2. Installing rpm packages which are required for Oracle installation

While installing CentOS, we have to install some rpm packages. During the installation, on the installation window you get list of packages. Here, we select “Customize” choice

oracle_install1

On “Customized” window, we check required packages and uncheck packages that are not required for Oracle Installation

oracle_install2

In the packages list, check following packages. Uncheck all packages that are not in the list below

Desktop Environments

GNOME Desktop Environment

Applications

Graphical Internet

Development

Development Libraries

Development Tools

GNOME Software Development

Java Development

Legacy Software Development

X Software Development

Servers

Server Configuration Tools

Web Server

Windows File Server

Base System

Administration Tools

Base

Java

Legacy Software Support

System Tools

X Window System

Furthermore, after installation of CentOS, we have manually to install these four rpm packages. Surely, you can select them (except libaio-devel package) from the package list during setup, for many people who don’t want to find these packages in the package list, installing it manually after system installation is the best option. These are packages which should be installed before Oracle installation

- compat-db-4.2.52-5.1.i386.rpm

- sysstat-7.0.2-1.el5.i386.rpm

- libaio-devel-0.3.106-3.2.i386.rpm

- libXp-1.0.0-8.1.el5.i386.rpm

In order to install these packages, you can use rpm –Uvh command by changing directory to CentOS directory inside the CD (DVD) of CentOS installation as shown below

oracle_install3

3. Changes to be made to Kernel parameters

After installing above mentioned packages, we need to change some Kernel parameters and make them match to Oracle requirements. Parameters which should be changed are shown below

shmmax

2147483648

shmmni

4096

shmall

2097152

shmmin

1

semmsl

250

semmns

32000

semopm

100

semmni

128

file-max

65536

ip_local_port_range

1024 65000

rmem_default

1048576

rmem_max

1048576

wmem_default

262144

wmem_max

262144

We do all these changes in the /etc/sysctl.conf file by adding these lines to that file:

kernel.shmmax = 2147483648

kernel.shmall = 2097152

kernel.shmmni=4096

kernel.sem=250 32000 100 128

fs.file-max=65536

net.ipv4.ip_local_port_range=1024 65000

net.core.rmem_default=1048576

net.core.rmem_max=1048576

net.core.wmem_default=262144

net.core.wmem_max=262144

After appending those lines we save that file and run the following command to make these changes effective immediately in the running system

/sbin/sysctl –p

oracle_install4

Setting Shell limits for the Oracle UserTo improve the performance of the software on Linux systems, you must increase the following shell limits for the oracle user:

1. Add the following lines to /etc/security/limits.conf file

oracle soft nproc 2047

oracle hard nproc 16384

oracle soft nofile 1024

oracle hard nofile 65536

2. Add the following lines to /etc/pam.d/login file

session required /lib/security/pam_limits.so

session required pam_limits.so

3. In order to use Oracle Software, we need to make a change in “oracle” user’s buffer size and number of opened file descriptors. In order to do it, we add below lines to /etc/profilefile

if [ $USER = "oracle" ]; then

if [ $SHELL = "/bin/ksh" ]; then

ulimit -p 16384

ulimit -n 65536

else

ulimit -u 16384 -n 65536

fi

fi

4. Changing redhat-release file

One of the first checks performed by the Oracle Universal Installer (OUI) is to determine if the host platform is supported. The OUI uses the file /etc/redhat-release to determine the platform. For the case of Red Hat Enterprise Linux, Oracle Database 10g Release 2 expects either RHEL 3 or RHEL/OEL 4.

The easiest way to get around this error is to modify the /etc/redhat-release file replacing the current release information (CentOS release 5 (Final)) with the following:

redhat-4

Before modifying /etc/redhat-release, make a backup copy of the file and ensure to replace the original one after the Oracle installation and patch process has been completed.

cp /etc/redhat-release /etc/redhat-release.original

echo “redhat-4″ > /etc/redhat-release

After all these configurations, you should get this result:

oracle_install5

4. Create groups and user for Oracle Installation

In this step, we create “oinstall” and “dba” groups and “oracle” user to install Oracle Software, and create new Database

groupadd oinstall

groupadd dba

useradd -m -g oinstall -G dba -d /home/oracle -s /bin/bash -c “Oracle Software Owner” oracle

passwd oracle

oracle_install6

5. Installing Oracle Database 10g Release 2

First of all, we need to download Oracle Database 10g R2. To download it, use this link:

http://download.oracle.com/otn/linux/oracle10g/10201/10201_database_linux32.zip

After download finish, we need to copy this file to the Virtual Machine. To copy it, we have two choices:

  • Copy it using USB Flash Drive
  • Copy it using Samba service
  • Create an image file (.iso) from zipped installation and mount it to Virtual Machine

Here, we’re going to copy the zipped file using second technique. With any ISO creator program, create .iso file from zipped installation file of Oracle Database. And then mount it to the Virtual Machine as shown below:

oracle_install7

Now switch to the desktop of CentOS, right click on DVD of CentOS installation on the desktop and click “Eject” as shown below:

oracle_install8

Now enter to “Computer” and double click on “CD-ROM” icon.

oracle_install9

Installation file of Oracle Database will be opened:

oracle_install10

Now, create install folder on the /tmp directory, change owner of this folder to “oracle”, copy this file into /tmp/install directory

Then unzip this file and begin installation as follows:

oracle_install11

After unzip completes, installation will begin automatically

oracle_install12

Oracle Database 10g Installation

oracle_install13

If you want to create new database after software installation, check “Create Starter Database” checkbox and enter database name and password, then click Next

oracle_install14

Specify Inventory directory (keep it as default) and click Next

oracle_install15

Here we see that all Prerequisite Checks succeeded.

oracle_install16

Click Install to begin installation

oracle_install17

Now, we’re installing Oracle 10g Software.

6. Creating an Oracle Database

As we’ve checked “Create Starter Database” at the first page of the installation, new database will be created automatically after software installation

oracle_install18

After database created, you’ll get information about your database, Enterprise Manager and Spfile

oracle_install19

Click Ok. In the below window, you’ll get location for two scripts which you should run as a root user to complete last configurations. Open new Terminal window and run those two scripts:

oracle_install20

Installation of Oracle Database 10g completed successfully! Congratulations!

Now reboot your server and login as oracle user and start newly created database.

oracle_install21

If we want to login to our database, we run sqlplus. But before it, we need to set Environment Variables. We can do it automatically by adding them to .bashrc file in the/home/oracle directory as below:

export ORACLE_HOME=/home/oracle/oracle/product/10.2.0/db_1

export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:$ORACLE_HOME/lib

export PATH=$ORACLE_HOME/bin:$PATH

alias database =’export ORACLE_SID=kamran;sqlplus “/ as sysdba”‘

oracle_install22

Now, let’s open new terminal and try again

oracle_install23

As you see, after setting Environment Variables to their correct values, I was able to login to SQL*Plus using two ways.

7. Connecting to Database with Enterprise Manager

Now, let’s start Oracle Enterprise Manager. In order to use EM, we should firstly start listener. In production environment, you need automate database, listener and EM startup. To automate them, please refer to one of my previous blogs – Automatically StartUp and Shutdown an Oracle Database in Linux OS

Start the listener

oracle_install24

Then, start Enterprise Manager

oracle_install25

Now, we can login to EM page to administer our database using above given address:

http://localhost.localdomain:1158/em/

oracle_install26

Enter user sys and its password, then select “SYSDBA” as a role and click Login

oracle_install27

Using Enterprise Manager, you can administer your database in very easy steps

That’s all!! Our Database and EM is ready for use! Congratulations!!!

By following above mentioned steps we were able to install Oracle 10g R2 on CentOS 5. But if we carry out frequent tests and as a result of these tests each time we are to install Oracle Database, then we need to automate installation of Oracle Database. I would suggest two options to overcome this problem:

1. To install CentOS+Oracle on VMware and copy image of VMware to elsewhere, then each time use this image to get fresh copy of Oracle Database

2. To automate installation of Oracle Database by using Shell Script

Let’s explain each option in details:

1. Firstly, I usually create new Virtual Machine with 10GB size. Then, I install CentOS on it and create an Oracle Database with all its configurations. Then I shut down Virtual Machine and copy all the folders to another directory. Usually, I create two copies of the Virtual Machine. Then I do all my tests on the first Virtual Machine. When it becomes useless, I shut down and delete it as a whole folder, open second Virtual Machine which I’ve copied and continue my tests.

2. Second way is the best method of approach to the problem. For this, I create a shell script and write all steps and do all configuration changes from this script. By running this script once, all configurations needed for Oracle Installation will be changed automatically and we will only be asked for new oracle user’s password and next we’ll see installation page open.

Automating installation of Oracle Database 10g Release 2 on Centos 5 using Shell Script

To automate this job, we wrote a Shell Script. Before running this script, we should follow some steps as shown below:

1. Firstly you should know that before running this script we should create install directory in /tmp directory and copy zipped installation file of Oracle to this directory with this installation script

2. Before running this script we must be sure that installation DVD of CentOS has been inserted or installation DVD image of CentOS mounted to the system. You can check it by running this code:

oracle_install28

3. After installation completes, change the following Environment Variables and alias name into proper names which you’ve used during installation in the .bashrc file

1. ORACLE_HOME – If it is different folder, change it to correct value

2. ORACLE_SID – If it is different SID, change it to correct SID

3. As an alias, you can assign whatever you want

If everything is OK as mentioned above, we change directory to /tmp/install folder and runinstall.sh file. By running this shell script, all configurations needed for installation will be automatically changed and only thing asked will be oracle user’s password. After that we’ll see Oracle Database installation page. By clicking Next buttons we’ll be able to install Oracle Software and Database very easily

Now, let’s install Oracle Database 10g using this Shell Script

First of all, we need to create install folder in the /tmp directory and copy zipped installation file of Oracle Database 10g to /tmp/install directory with install.sh script and check their existence. After that we need to mount Centos DVD once more, because we’re going to install some packages that were not installed with CentOS. After getting below screen, you can start installation

oracle_install29

Here we see that

  • We have zipped installation file of Oracle Database 10g in the /tmp/install directory
  • We mounted CentOS DVD

Now, switch to /tmp/install folder and run install.sh script

oracle_install30

oracle_install31

oracle_install32

Here, enter oracle user’s password. Then click ok. After this step, zipped file will be unzipped

oracle_install33

After it finishes unzipping, we’ll get Installation Window

oracle_install34

That’s all! After getting this page, you should follow above mentioned installation steps in which we installed Oracle Database manually.

Using automatic install script we’ve avoided of all configuration settings and got Oracle 10gR2 installer page opened successfully

The automatic installation script for Oracle Database on Linux is as follows:

#########———— Installing Rpm files —–########

#Change directory to /tmp/install

cd /tmp/install

#Install all packages that are not installed during OS installation and that are required packages for Oracle Database 10gR2

echo “Installing rpm packages …”

rpm -Uvh “$(find /media/ -name compat-db*)”

rpm -Uvh “$(find /media/ -name sysstat*)”

rpm -Uvh “$(find /media/ -name libaio-devel*)”

rpm -Uvh “$(find /media/ -name libXp-1*)”

echo “Rpm packages installed

#Add lines to limits.conf file

echo “Changing limits.conf file”

cat >> /etc/security/limits.conf <

oracle soft nproc 2047

oracle hard nproc 16384

oracle soft nofile 1024

oracle hard nofile 65536

EOF

echo “limits.conf file changed successfully

#Add lines to profile to give maximum limit for Oracle user

echo “Changing /etc/profile file ….”

cat >> /etc/profile <

if [ \$USER = "oracle" ]; then

if [ \$SHELL = "bin/ksh" ]; then

ulimit -p 16384

ulimit -n 65536

else

ulimit -u 16384 -n 65536

fi

umask 022

fi

EOF

echo “/etc/profile file changed successfully

#Add line to /etc/pam.d/login file

echo “Changing /etc/pam.d/login file …”

cat >> /etc/pam.d/login <

session required /lib/security/pam_limits.so

EOF

echo “/etc/pam.d/login file changed successfuly

#Add some kernel parameters to /etc/sysctl.conf file

echo “Changing kernel parameters … “

cat >> /etc/sysctl.conf <

kernel.shmmax = 2147483648

kernel.shmall = 2097152

kernel.shmmni=4096

kernel.sem=250 32000 100 128

fs.file-max=65536

net.ipv4.ip_local_port_range=1024 65000

net.core.rmem_default=1048576

net.core.rmem_max=1048576

net.core.wmem_default=262144

net.core.wmem_max=262144

EOF

echo “Kernel parameters changed successfully

#Save all new kernel parameters

/sbin/sysctl -p

#Add “redhat-4″ line to /etc/redhat-release file

echo “Changing /etc/redhat-release file …”

cp /etc/redhat-release /etc/redhat-release.original

echo “redhat-4″ > /etc/redhat-release

echo “/etc/redhat-release file changed successfully

#Create new groups and “oracle” user and add this user to group

echo “Creating new groups and ‘oracle’ user …”

groupadd oinstall

groupadd dba

useradd -m -g oinstall -G dba -d /home/oracle -s /bin/bash -c “Oracle Software Owner” oracle

passwd oracle

echo “Groups and user created successfully

#Adding Environment Variables

#Adding Environment Variables

cat >> /home/oracle/.bashrc <

export ORACLE_HOME=/home/oracle/oracle/product/10.2.0/db_1

export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:$ORACLE_HOME/lib

export PATH=$ORACLE_HOME/bin:$PATH

alias mydb=’export ORACLE_SID=mydb;sqlplus “/ as sysdba”‘

export ORACLE_SID=mydb

EOF

EOF

#Unzip setup of Oracle

echo “Unzipping setup of Oracle 10g Release 2…. “

unzip 10201_database_linux32.zip

echo “Setup file successfully unzipped

#Enter to installation directory and run the installation …

echo “Installation begins …”

cd /tmp/install/database

chmod 755 runInstaller

chmod 755 install/.oui

chmod 755 install/unzip

xhost +

sudo -u oracle /tmp/install/database/runInstaller
